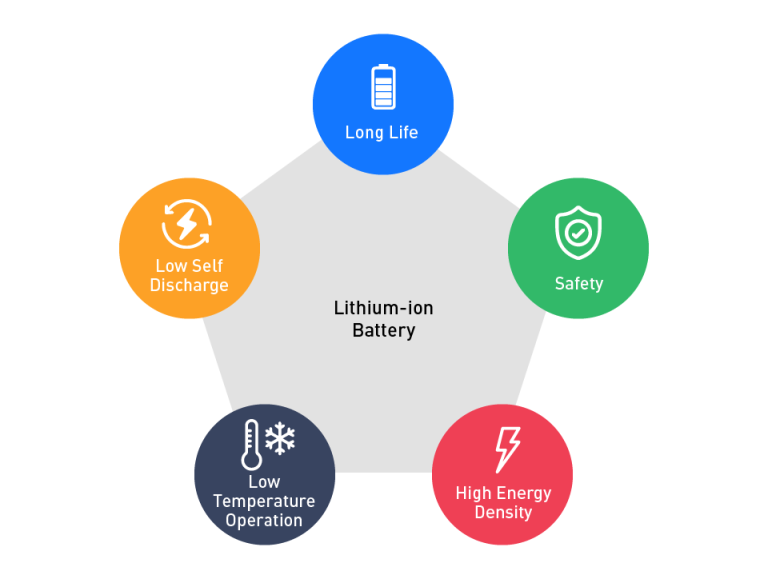

Lithium-ion (Li-ion) batteries are at the core of many modern energy storage applications, from consumer electronics to electric vehicles (EVs) and renewable energy systems. While these batteries are known for their high energy density, long lifespan, and efficiency, their performance and safety heavily depend on the proper management of their charge and discharge cycles. This is where Battery Management Systems (BMS) come into play.
A BMS is an electronic system that manages a rechargeable battery’s performance by monitoring its voltage, temperature, state of charge (SOC), and other critical parameters. For lithium-ion batteries, which are sensitive to overcharging, deep discharging, and temperature extremes, a BMS is essential to ensure the battery operates efficiently and safely over its lifespan.
In this article, we’ll explore the role of Battery Management Systems for lithium-ion batteries, their key functions, and why they are crucial for the success of lithium-ion-based technologies.
What is a Battery Management System (BMS)?
A Battery Management System (BMS) is a specialized control circuit designed to protect and manage the individual cells within a battery pack. The BMS ensures that each cell operates within its safe parameters to maximize battery performance, efficiency, and lifespan.
The primary functions of a BMS include:
- Monitoring Battery Health: The BMS constantly monitors key parameters such as voltage, temperature, and current to ensure the battery operates within safe limits.
- Protecting the Battery: It prevents the battery from overcharging or overdischarging, both of which can shorten the battery’s lifespan or even lead to dangerous situations, such as thermal runaway.
- Balancing the Battery Cells: Lithium-ion battery packs typically consist of multiple cells connected in series and parallel. Over time, cells can become unbalanced, with some charging or discharging faster than others. The BMS ensures that all cells in the pack remain balanced to optimize performance and prevent damage.
- State of Charge (SOC) Estimation: The BMS estimates the SOC of the battery, which helps determine how much energy is available for use. Accurate SOC estimation is critical for maintaining performance, preventing deep discharges, and optimizing charging cycles.
- Temperature Management: Since lithium-ion batteries are sensitive to temperature extremes, the BMS monitors the battery’s temperature and activates cooling systems or stops charging/discharging when necessary to prevent overheating.
- Communication with External Systems: The BMS often interfaces with external devices, such as chargers, motors, or power electronics, to provide real-time battery data and enable smart charging or energy distribution.
By ensuring that the battery operates within its designed limits, the BMS enhances the safety, efficiency, and longevity of the lithium-ion battery.
Why is a BMS Essential for Lithium-Ion Batteries?
Lithium-ion batteries, while advanced, are susceptible to issues if not properly managed. A well-designed BMS plays a crucial role in addressing these challenges, making it essential for applications in electric vehicles, renewable energy systems, and consumer electronics.
- Overcharge and Overdischarge Protection
Lithium-ion cells have a limited voltage range—typically between 2.5V (empty) and 4.2V (full). Charging or discharging a lithium-ion battery beyond these limits can lead to irreversible damage to the cells, reducing their capacity or even causing safety hazards like thermal runaway, where the battery overheats and potentially catches fire.
A BMS ensures that each cell within the battery pack remains within these voltage boundaries. If a cell’s voltage reaches a dangerous level, the BMS will either cut off the charging process or disconnect the load to prevent further discharge, protecting the battery and the device it powers.
- Cell Balancing
In a multi-cell battery pack, such as those used in electric vehicles or energy storage systems, individual cells may charge and discharge at different rates due to slight variations in their manufacturing, age, or temperature. This imbalance can lead to capacity loss, reduced performance, or even safety issues over time.
The BMS uses a process called cell balancing to ensure that all cells in the pack charge and discharge at the same rate. It monitors the voltage of each cell and redistributes charge between cells, ensuring that no single cell is overcharged or overdischarged. There are two main methods of cell balancing:
- Passive Balancing: Excess energy from higher-voltage cells is dissipated as heat through resistors.
- Active Balancing: Energy is transferred from higher-voltage cells to lower-voltage cells, improving overall efficiency.
Cell balancing is essential for maintaining the long-term performance and reliability of lithium-ion batteries, especially in applications like electric vehicles, where pack sizes can consist of hundreds or even thousands of cells.
- Thermal Management
Lithium-ion batteries generate heat during both charging and discharging. If the battery temperature exceeds safe limits (typically 60°C or more), it can degrade the performance of the battery or even lead to catastrophic failure. The BMS continuously monitors the temperature of the battery pack and, if necessary, activates cooling systems or disables charging/discharging to maintain safe operating temperatures.
In many applications, especially electric vehicles, the BMS works in conjunction with cooling systems, such as liquid cooling or forced air systems, to regulate the temperature and prevent overheating. For instance, in EVs, the BMS ensures that the battery stays within optimal temperature ranges to preserve capacity, extend life, and prevent accidents.
- State of Charge (SOC) Estimation
Accurate SOC estimation is one of the most important functions of a BMS. Knowing the battery’s remaining charge is crucial for both users and systems that rely on the battery, especially in EVs or backup power systems where users need to know how much energy is available for driving or operation.
The BMS calculates SOC using data from voltage, current, and temperature sensors, along with algorithms that predict the battery’s remaining energy based on these factors. SOC estimation is particularly important because the voltage of a lithium-ion battery does not change linearly with charge, making it challenging to estimate the charge remaining based on voltage alone.
An accurate SOC also helps optimize the charging process. For example, knowing the exact SOC allows the BMS to regulate charging speed and prevent overcharging, extending battery life.
- Safety and Fault Detection
Lithium-ion batteries can become hazardous under certain conditions, such as physical damage, deep discharge, or exposure to extreme temperatures. The BMS is designed to detect fault conditions and prevent further damage. If a fault is detected, such as a short circuit, excessive voltage, or abnormal temperature, the BMS can trigger protective measures like disconnecting the battery from the load or initiating an emergency shutdown.
Some advanced BMS models can also communicate with external systems to alert users or maintenance teams of potential issues, enabling proactive troubleshooting and minimizing downtime.
The Future of Battery Management Systems
The role of the BMS will continue to grow as lithium-ion batteries are integrated into more applications, from electric vehicles to renewable energy systems. Advances in BMS technology, including the use of artificial intelligence (AI) and machine learning algorithms, are enhancing real-time monitoring and predictive maintenance capabilities, making lithium-ion battery systems even more efficient and reliable.
Additionally, as battery sizes increase, such as in large-scale energy storage systems or EVs, more sophisticated BMS solutions will be required to manage the complexity of hundreds or even thousands of individual cells. This will drive innovations in distributed BMS architectures, wireless monitoring, and advanced algorithms for better cell balancing, state estimation, and safety features.
Conclusion
Battery Management Systems are a critical component of lithium-ion battery technology, ensuring the safety, longevity, and optimal performance of these energy storage systems. From protecting against overcharging and overdischarging to providing accurate state-of-charge estimates and managing temperature, the BMS is indispensable in applications ranging from consumer electronics to electric vehicles and renewable energy storage. As lithium-ion batteries continue to power the next generation of technology, BMS will evolve to meet the demands of increasingly complex and large-scale energy storage systems, securing a sustainable and efficient future for energy storage.
